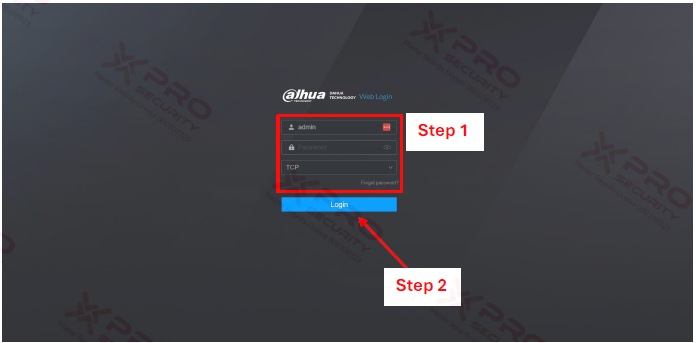

Step 1: Enter NVR Username and Password.
Step 2: Click “Login”.

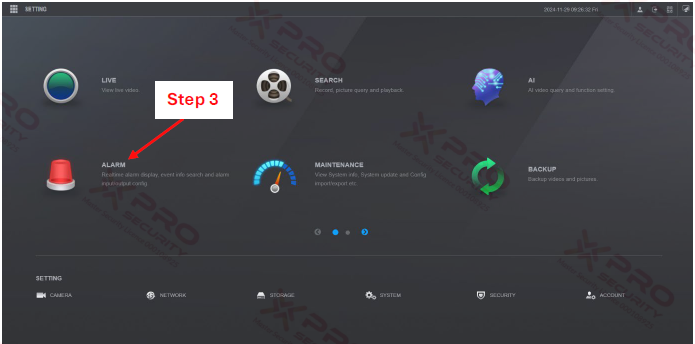

Step 3: Click “ALARM”.

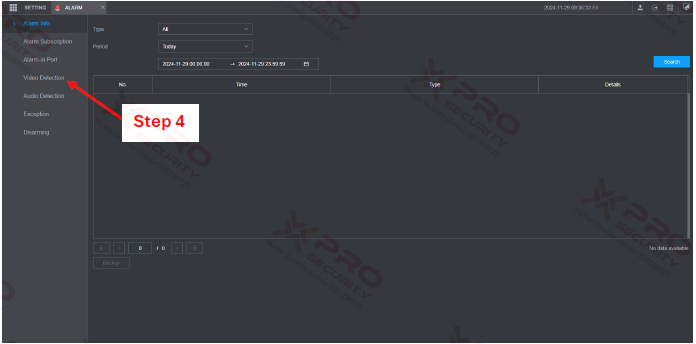

Step 4: Click “Video Detection”.

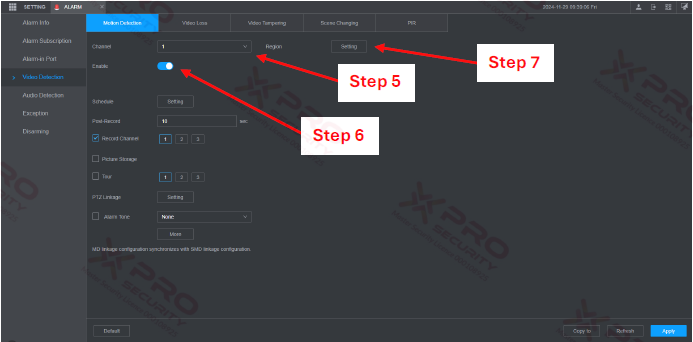

Step 5: Select cameras.
Step 6: Click to enable motion detection.
Step 7: Click “Setting”.

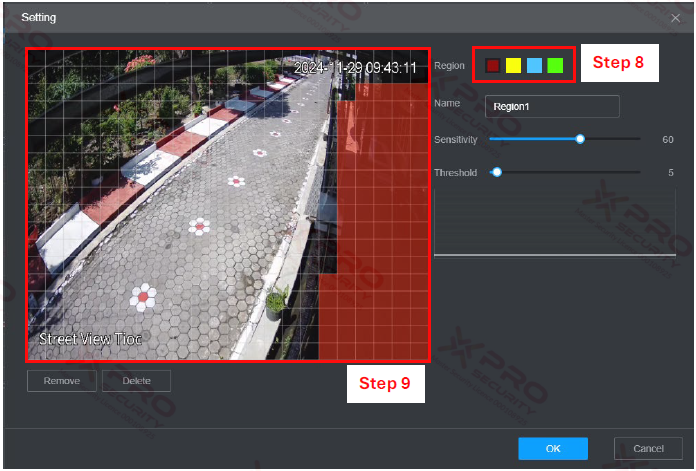

Step 8: Set region, red for region1, yellow for region2, blue for region3, and green for region 4.
Step 9: Draw the region on camera view.

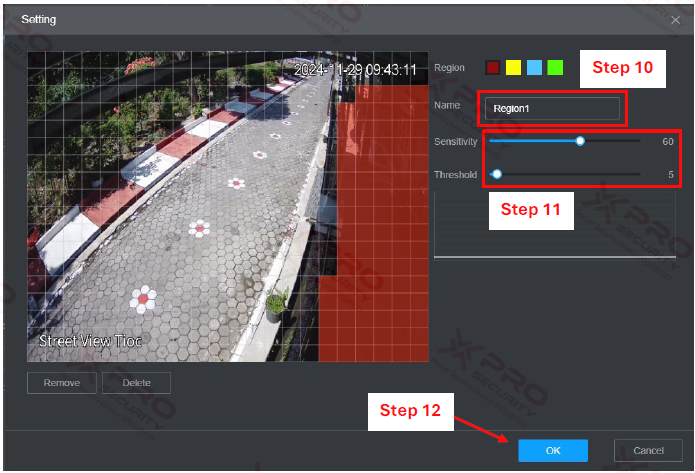

Step 10: Change the region name.
Step 11: Adjust sensitivity and threshold.
Step 12: Click “OK”.

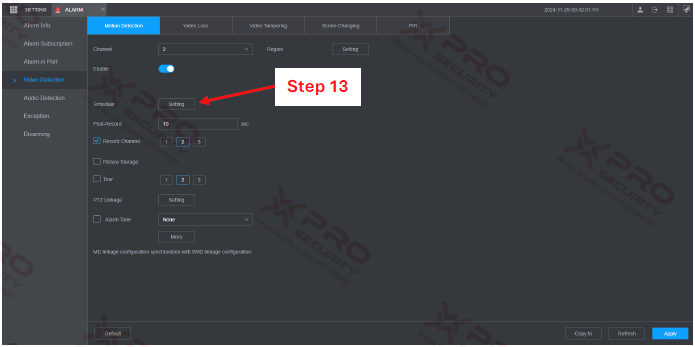

Step 13: Click “Setting”.

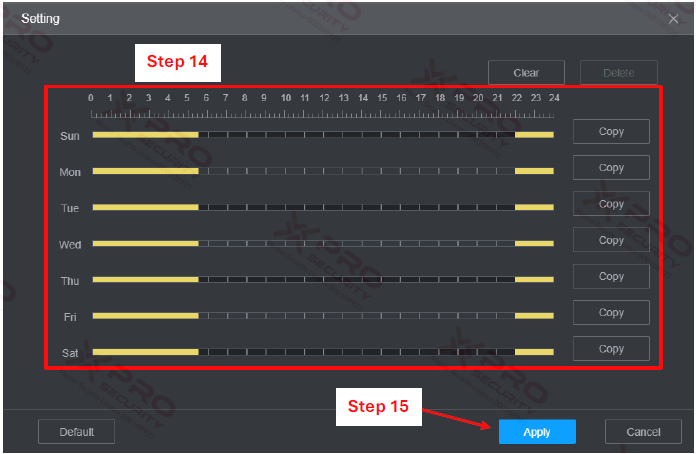

Step 14: Set a schedule for motion detection.
Step 15: Click “Apply”.

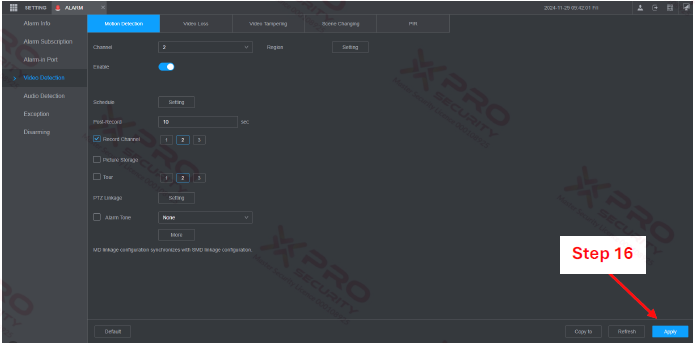

Step 16: Click “Apply”.
