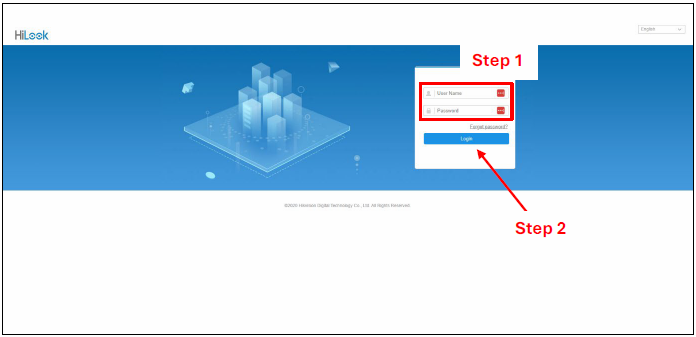

Step 1: Enter NVR Username and Password.
Step 2: Click “Login”.

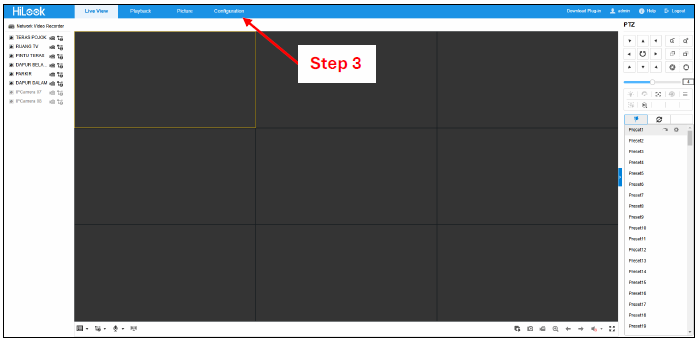

Step 3: Click “Configuration”.

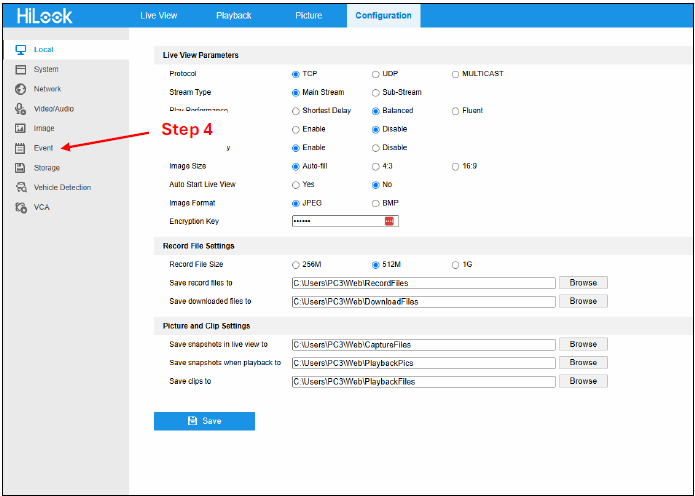

Step 4: Click “Event”.

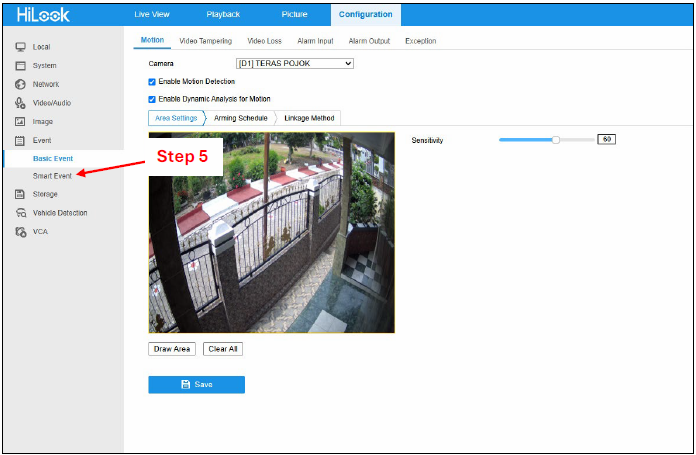

Step 5: Click “Smart Event”.

Step 6: Select cameras.
Step 7: Click the check box to enable intrusion detection.
Step 8: Set how many regions you want.

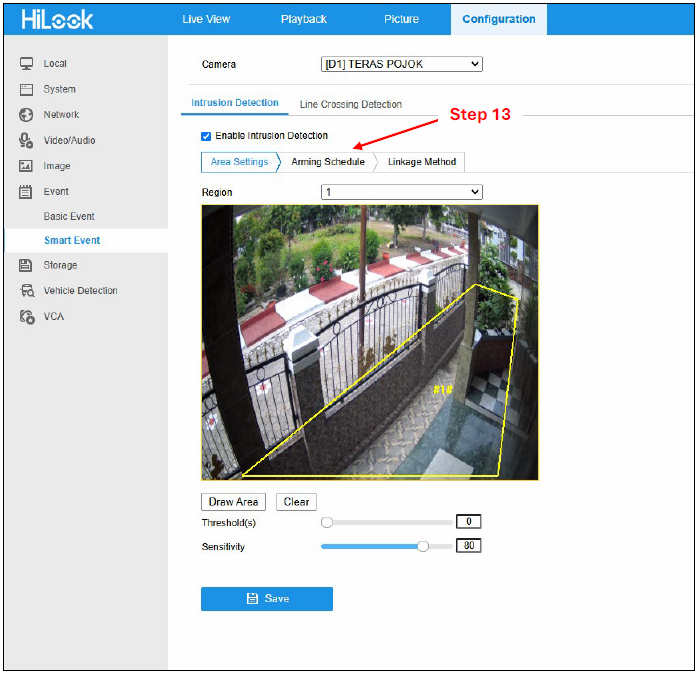

Step 9: Click “Draw Area”.
Step 10: Draw intrusion detection areas.
Step 11: Adjust threshold and sensitivity.
Step 12: Click “Save”.

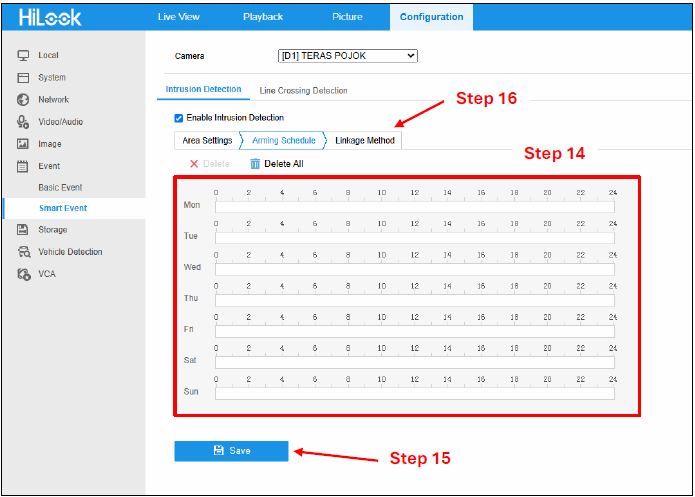

Step 13: Click “Arming Schedule”.

Step 14: Set an arming schedule.
Step 15: Click “Save”.

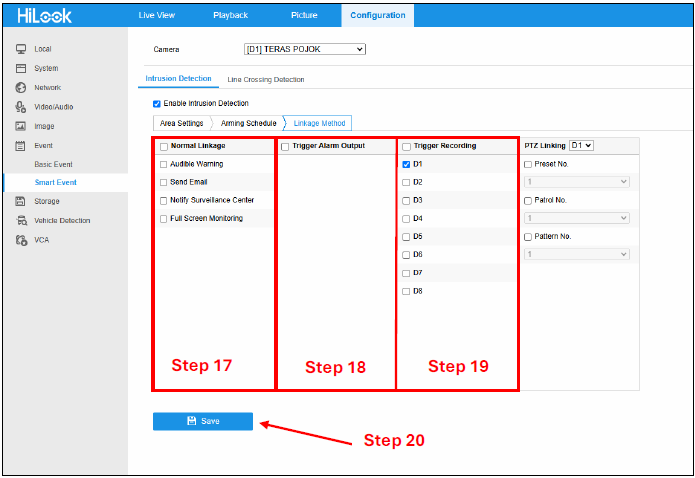

Step 16: Click “Linkage Method”.

Step 17: Set “Normal Linkage”. For example, you select send email. If an intrusion is detected, NVR will send a notification to your email.
Step 18: Set “Trigger Alarm Output”. For example, you add an alarm output (siren) to your CCTV system. If an intrusion is detected, an alarm output will sound.
Step 19: Set “Trigger Recording”. For example, if an intrusion is detected, you can select any camera that will record it.
Step 20: Click “Save”.
